Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

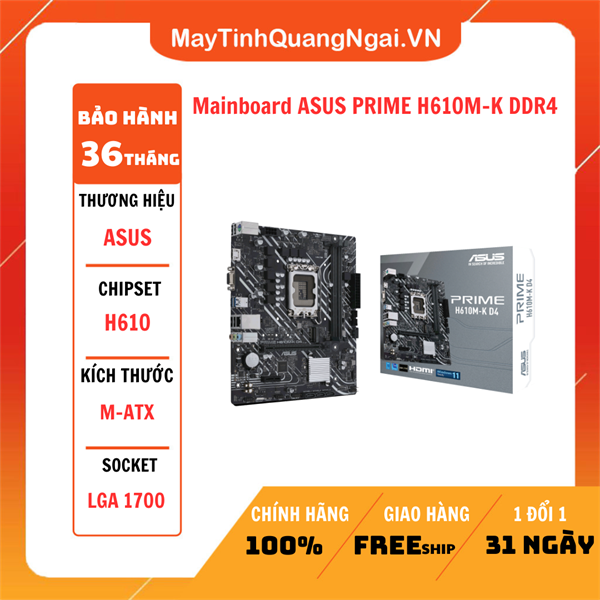

H610M-K D4

CPU hỗ trợ

Intel

Chipset

H610

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel^® 12^th Gen Processors

1 x PCIe 4.0 x16 slot

Intel^® H610 Chipset

1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel^® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI^® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

Kích cỡ

mATX Form Factor

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
