| Sản phẩm: | Bo mạch chủ |
| Tên Hãng: | MSI |

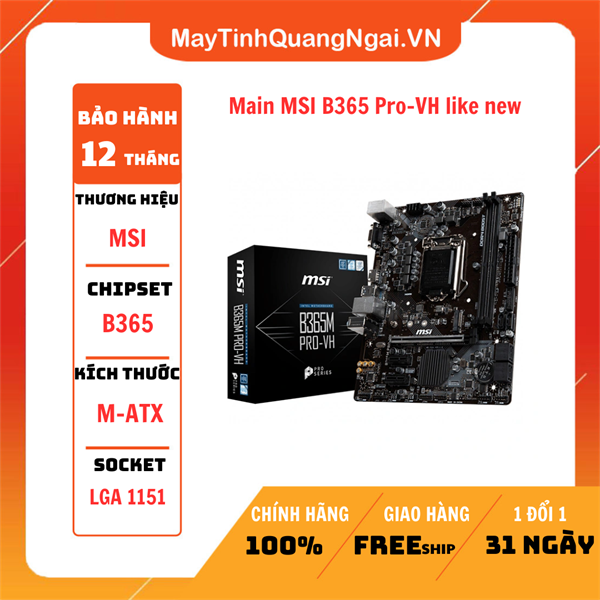

| Model: | B365M PRO-VH |
| CPU hỗ trợ: | Intel |
| Chipset: | B365M |
| RAM hỗ trợ: | 2 x DDR4 memory slots, support up to 32GB DDR4 2666/ 2400/ 2133 MHz |
| Khe cắm mở rộng: | 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Ổ cứng hỗ trợ: | 6 x SATA 6Gb/s ports, 1 x M.2 slot (Key M) |
| Cổng kết nối (Internal): | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports); 6 x SATA 6Gb/s connectors; 1 x Clear CMOS jumper; 2 x Front panel connectors; 1 x Serial port connector |
| Cổng kết nối (Back Panel): | PS/2 Combo; VGA Port; LAN Port; HD Audio Connectors;; USB 2.0 Ports; HDMI Port; USB 3.1 Gen1 Ports |
| LAN / Wireless: | 1 x Realtek RTL8111H Gigabit LAN controller |
| Kích cỡ: | 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor |
