Sản phẩm | Bo mạch chủ |
Tên Hãng | ASROCK |

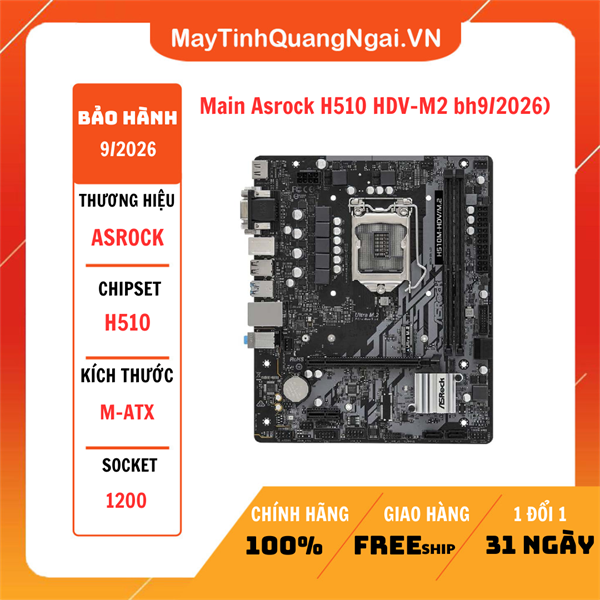

Model | H510M-HDV/M.2 |
CPU hỗ trợ | Intel |
Chipset | H510 |
RAM hỗ trợ | 2 x DIMM SLOTS, tối đa 64GB DDR4
Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory |
Khe cắm mở rộng | 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel® Core™ Processors
- 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks |
Ổ cứng hỗ trợ | - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
Cổng kết nối (Internal) | - 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis Fan Connector (4-pin)**
- 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
Cổng kết nối (Back Panel) | - 1 x PS/2 Keyboard Port
- 1 x PS/2 Mouse Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone |
LAN / Wireless | - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE |
Kích cỡ | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm |
